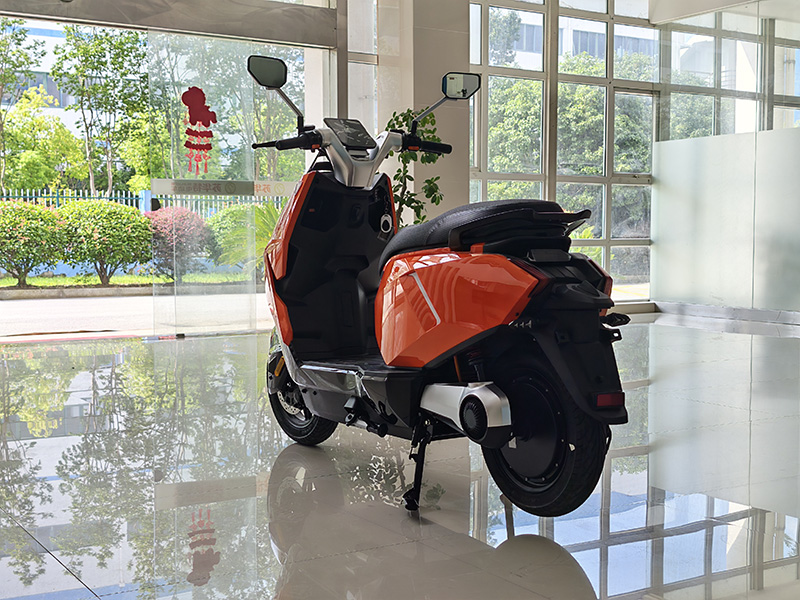

型号  Type

SHT900

电 器 系 统

  Electrical system

电控Electric control

72V 智能化控制系统 ；无级调速 ，制动断电 ，欠压保护 ，过 流保护等性能 ，稳定。72V 大功率控制器，强劲快速。

72V intelligent control system. It features stepless speed regulation, brakepower cut-off, undervoltage protection and overcurrent protection with stable performance. Equipped with 72Vhigh-power controller for strong power and fast response.

锂电池Lithium battery

72V/30A h 磷酸铁锂电池

72V/30Ah Lithium iron phosphate battery

电机Motor

72V 2000W电机；超大功率满盘电机,动力持久强劲,爬坡能力,载重能力强。

72V 2000W motor; It is a super high-power full-disc motor, of fering lasting and powerful performance,   with strong climbin g ability and high load-bearing   capacity.

充电器Charger

72V 充电平稳 、耐高温

With 72V, the charging process is stable and it can withstand high temperatures.

充电时间Charging time

6-8 小时 6-8hours

音响Audio system

电喇叭 Electric horn

车 身 配 置

  Body matching

车体Body

钢制车架+塑料外壳

Steel frame + plastic shell

仪表台  Dashboard

多功能液晶数码仪表盘 ，功能齐全

Dashboard: Multi - function LCD digital instrument panel with complete functions.

车架Frame

摩托款车架， 高强度钢结构件.

Motorcycle-style frame, high-strength steel structural parts

灯光及信

号  Lights and signals

前照灯 ，前后转向灯 ，组合后尾灯 ， 电喇叭；凌厉霸气的水 晶的前大灯 ，按照仿生学原理设计 ，外形更美观 ，照明更安全

Headlights, front and rear turn signals, combined rear   taillig hts, and an electric horn. The sharp and imposing crystal head lights are designed in accordance with the  principles of bioni cs, featuring a  more aestheticallypleasing appearance and ensuring safer illumination.

颜色Color

客户可定制which can be customized by customers.

后视镜Rearview mirrors

左右各一手动型外后视镜

Rearview mirrors: One manual external rearview mirror on eac h of the left and right sides.

座椅Seat

整体式海绵外包皮革座椅 ，舒适耐用。

Seat: Integrated sponge seat covered with leather, which is co mfortable and durable.

底 盘

 Bottom plate

座额定乘员

Rated passenger capacity

2 人（含驾驶员）

2 persons (including the driver).

初速 30km/h 制动距离

Braking distance at an  i nitial speed of 30km/h

≤6.5 m

动力传动系统

Power transmission syste m

无级调速系统

Stepless speed control system

驱动系统Drive system

后轴驱动

Rear axle drive

减震 Shock absorption

精品后减震

High - quality rear shock absorption

制动系统Brake system

前碟刹,后碟刹,性能优越

Front disc brake, rear disc brake, superior performance.

外形尺寸 长*宽*高

(mm)Size Length * Width * H eight (mm)

1940×665×1145 mm

轴距Wheelbase

1390 mm

轮胎Tyre

前轮 ：90/90/12   后轮 110/70/12 ，耐磨防刺穿 ， 品牌真空轮胎

Front tire: 90/90/12Rear tire: 110/70/12  Wear-resistant and p uncture-proofBrand vacuum tire

整车装备质量

Vehicle curb weight

93kg

整车载荷

ehicle load-carrying capacity

200kg

制动距离Braking distance

≤6.5 m

最大行驶速度Maximum travel speed

≤60km/h

续驶里程Range

≤100Km

最大爬坡度Maximum gradient

≤30%

充电输入电压Charge input voltage

220v
