品牌Brand

苏华特

型号Type

TDR756Z

电 器 系 统   Electrical system

电控

Electric control

48V 智能化控制系统；无级调速，制动断电， 欠压保护 ，过流保护等性能 ，稳定。48V 共  享专用控制器、多重保护

48V intelligent control system; Stepless speed regulation, braking power off, undervoltage protection, overcurrent protection and other performance, stable. 48V shared dedicated controller, multiple protection

电池Battery

48V 7Ah 启动锂电池48V 7Ah starting lithium battery

电机Motor

安乃达 48V 350W   永磁直流无刷电机；高效电机，动力强劲，高效节能，续航里程长。

Aneda 48V 350W permanent magnet DC brushless motor; High efficiency motor, powerful power, high efficiency and energy saving, long driving range.

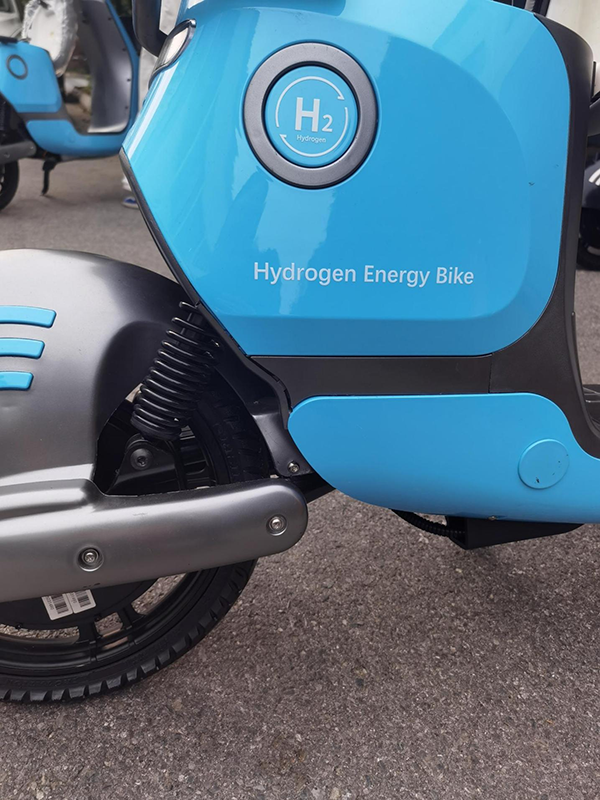

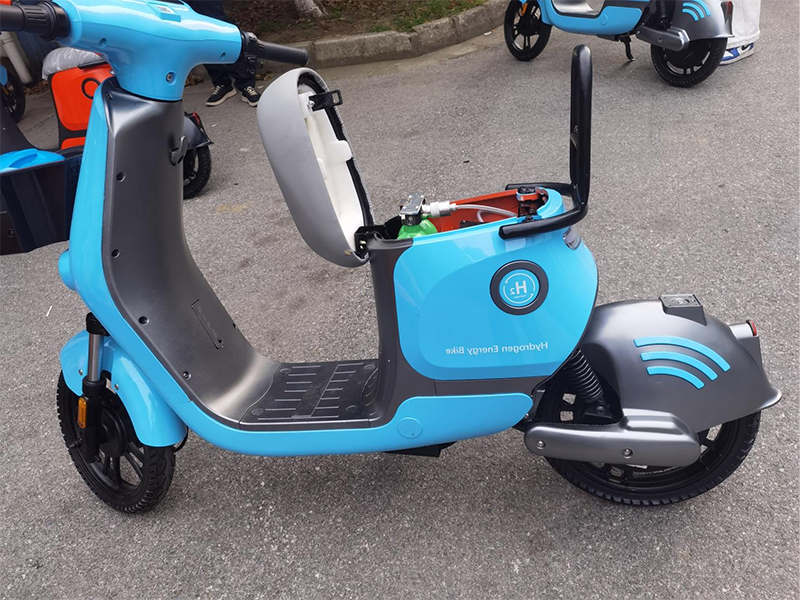

氢能源系统

Hydrogen energy system

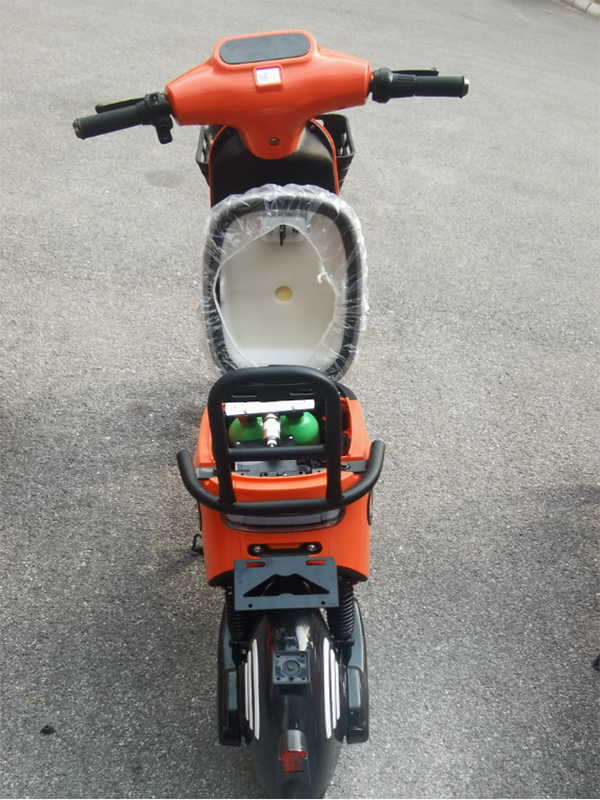

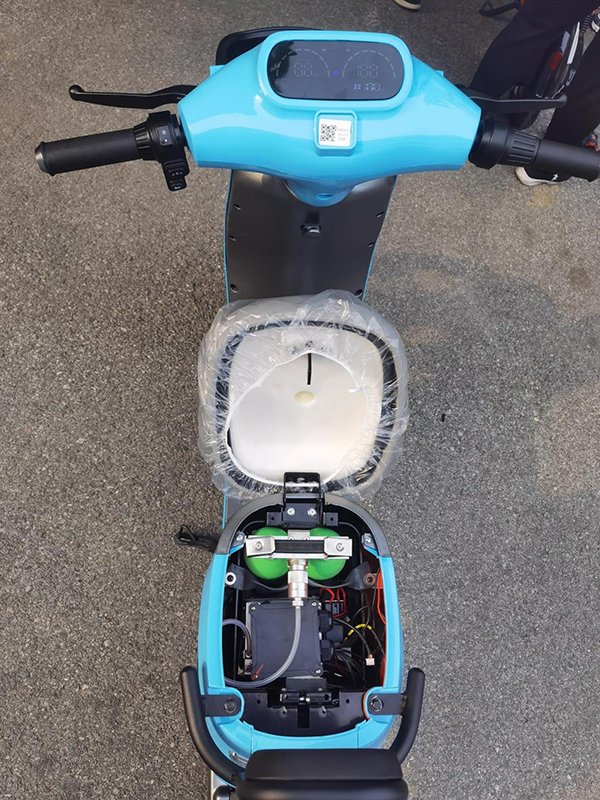

氢燃料电堆系统；2个容量40g氢气瓶

Hydrogen fuel cell stack system; two 40 - gram hydrogen cylinders

电路系统

Circuit system

全车防水、阻燃插件，骑行更安全

Whole waterproof, flame retardant plug-in, more safe riding

颜色colour

客户可定制 Customizable

车体Body

钢制车架+塑料外壳Steel frame + plastic shell

仪表

Instrument panel

多功能黑莓全面屏数码仪表盘，功能齐全

Multifunctional blackberry Full screen digital dashboard, full of features

车架Frame

新国标锂电车车架，高强度钢结构件；整车 采用大踏板 ，前后避震 ，结构硬朗、扎实、 稳定。New national standard lithium tram frame, high-strength steel structure; The whole vehicle adopts large pedal, front and rear shock absorber, the structure is strong, solid and stable

前叉Front fork

Q195 无缝钢管材质 ，外加塑料防护套

Q195 Seamless steel tube material with plastic protective sheath

灯光及信号Lights and signals

透镜 LED 大灯 ，前照灯 ，后尾灯带刹车灯

Lens LED headlights, headlights, rear taillights with brake lights

前减震Front shock absorber

液压前减

Hydraulic forward reduction

后减震Rear shock absorber

带阻尼后减震

Rear shock absorption with damping

定制贴字ustom labeling

可根据使用单位要求定制贴字It can be customized according to the requirements of the user

动力传动系统Power transmission system

无级调速系统

Stepless speed control system

驱动系统

Drive system

后轴驱动

Rear axle drive

制动系统

Brake system

前鼓刹,后鼓刹 ，性能优越

Front and rear drum brake, superior performance

外形尺寸 长*宽*高(mm)

Size Length * Width * Height (mm)

1600mm×640mm×1050mm

整车质量Vehicle mass

55kg

整车载荷Vehicle load

75kg

轴距

Wheelbase

1200mm

轮胎

Tyre

16 ×2.5-412 耐磨轮胎

额定乘员Rated occupant

1人

制动距离

Braking distance

≤6.6 m

最大行驶速度

Maximum travel speed

≤25km/h

续驶里程

Range

≤80km

最大爬坡度

Maximum gradient

≤15%

充电输入电压

Charge input voltage

220v

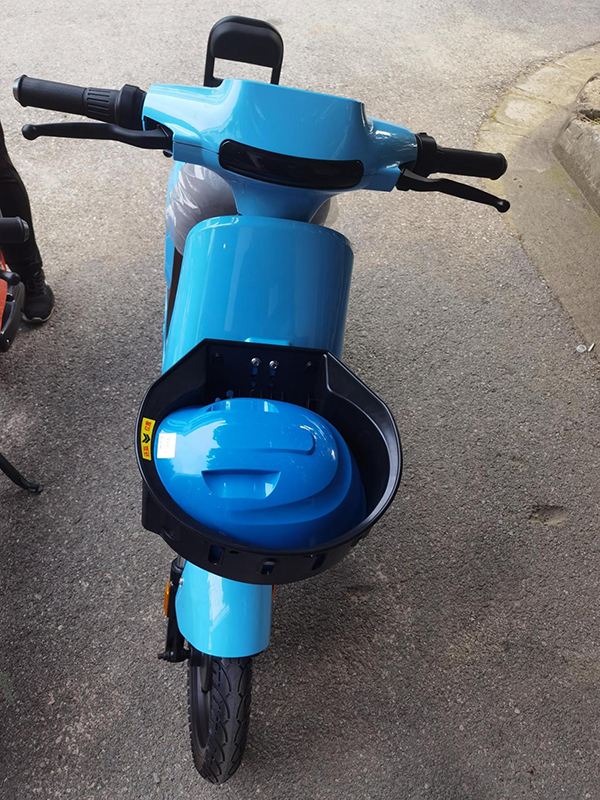

头盔helmet

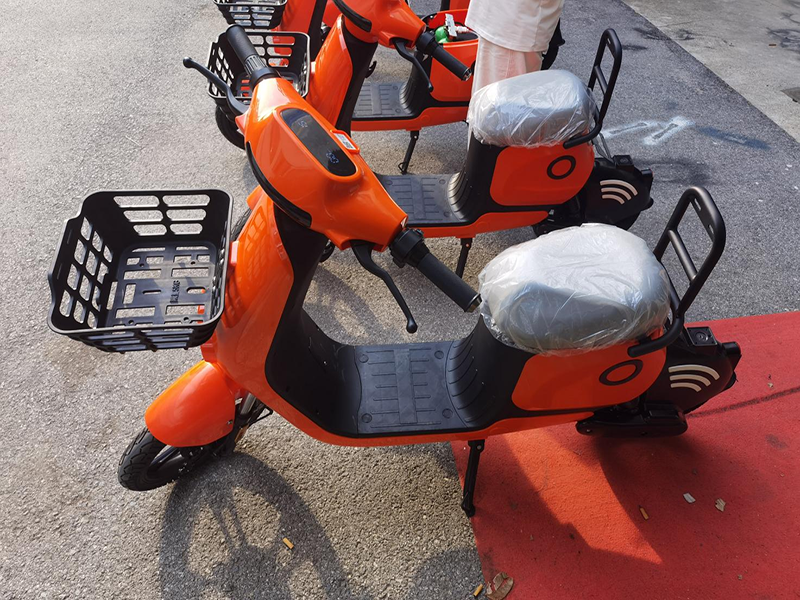

车辆配置货架、铁栏筐（定制）The vehicle is equipped with a shelf and a customized iron railing basket.
