1

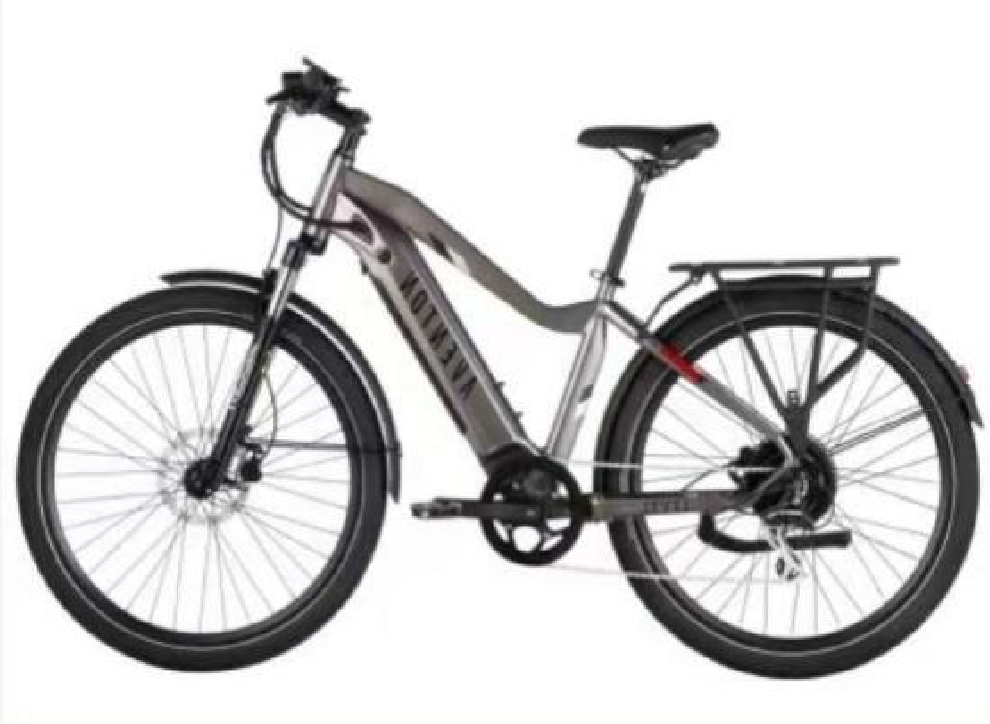

操  控  类

Headset. Control Category

车架Frame

6066 铝合金车架

6066 aluminum alloy frame

26 寸，电机 750W，勾爪加厚，开档依电机图纸，柱式安装， 全车需补土

26-inch, 750W motor, thickened dropout, fork spacing according to motor drawings, column-mounted, full vehicle needs putty.

2

前叉Fork

26 山地全铝油压，机械锁死，带泥板安装位置，油管限位孔

26-inch full-aluminum mountain bike front fork with oil pressure damping, mechanical lockout, fender mounting positions, and oil tube limiting holes.

3

车头碗Headset

KLB482

Φ28.6*50*30   H:14 附太阳花上压盖

Φ28.65030, H:14, with sunflower upper cover.

4

垫圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

68 五通

68mm bottom bracket shell

双边力矩 ， 防水线长 150mm ， 出四芯母端

Dual-sided torque, waterproof wire length 150mm, with four-core female terminal.

6

車把Handlebar

22.2 中间挤凸  31.8 长 ：630mm

22.2 (with middle convex extrusion), 31.8, length: 630mm.

7

把立Stem

F-012

Φ31.8* Φ28.6   100mm

8

把套Handlebar grip

黑色 ，双边铝环 ，带黑色尾塞

Black, with double-sided aluminum rings and black end plugs.

9

鞍座Saddle

运动型鞍座 ，黑弓   Sport saddle, black rails.

10

鞍座管Seat post

Φ27,2 ， 300 长度 ，带刻度哑黑

Φ27.2, length 300mm, with scale, matte black.

座管夹Seat post clamp

Φ30.4mm

11

脚踏Pedal

LU-984DU

107*96*28MM 2DU 硼钢 塑料 散珠

107*96*28MM 2DU boron steel and plastic, loose balls

12

刹车类

Brake Category

刹把Brake lever

3520

铝手柄缩仔黑色配 22.2 车把 ，二芯断电线长不含防水插件 270mm(防水线我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

• Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

13

碟刹Disc brake

机械碟刹 F/R  碟盤:Φ180 ALLOY  主體烤漆霧黑色 前柱式按装后侧式按装 附螺丝Aluminum handlebar grip (shrunk type, black), compatible with 22.2mm handlebars.• Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

传动类

Transmission Category

齿盘Chainring

1/2 × 3/32"  48T 铁齿+PVC 黑色半罩黑色铝曲柄 170mm9/16"

1/2 × 3/32" 48T iron teeth + PVC, black half cover, black aluminum crankarms, 170mm, 9/16".

15

链条Chain

Z7

1/2 × 3/32 × 140L PPO 接头

1/2 × 3/32 × 140L, with PPO connector.

16

輪胎Tire

26"*1.75" 电动车用    内外胎加长美嘴

26"*1.75" electric bike tire and inner tube with extended Schrader valve.

17

前轮圈Front rim

26” ，铝圈。 13G*36 孔加长美嘴

26", aluminum rim. 13G*36 holes with extended Schrader valve.

18

后轮圈Rear rim

26” ，铝圈。 12G*36 孔加长美嘴

26", aluminum rim. 12G*36 holes with extended Schrader valve.

19

衬带Tube

尼龙衬带 20"*70W 对折长度 615mm

Nylon tube, 20"*70W, folded length: 615mm.

20

辐条前

Front spokes

13G*黑色 ，附加长铜头 6mm SUS   4 交叉  +编圈

13G black spokes with extended 6mm SUS copper nipples, 4-cross lacing + wheel building.

21

辐条后

Rear spokes

12G 长 ，黑色 ， 附加长铜头 6mm SUS   2 交叉

12G long, black spokes with extended 6mm SUS copper nipples, 2-cross lacing.

22

前花鼓

Front hub

3/8*12G*36H *135W 175L     铝： B47F    18.48 元/个

3/812G36H*135W 175L, aluminum: B47F, ¥18.48 each.

23

整  车  类Vehicle category

前泥板

Front fender

26

PVC 材质 ，26 寸 ，支棍长度可调

PVC material, 26-inch, adjustable strut length.

24

后泥板

Rear fender

PVC 材质 ，26 寸 ，支棍长度可调

PVC material, 26-inch, adjustable strut length.

后椅架

Rear rack

铝手柄缩仔黑色配 22.2 车把 ，二芯断电线长不含防水插件 270mm(防水线我司提供）

Aluminum handle shrinker in black, compatible with 22.2mm handlebars. Two-core disconnect wire length (excluding waterproof plug): 270mm (waterproof wires provided by our company).

25

停車架

Kickstand

26 寸  ALLOY  L215(铆钉到内侧底端面）

26-inch, ALLOY, L215 (from rivet to inner bottom end face)

27

指拨Shifters

三芯转把 ，右手安装Three-core twist grip, right-hand installation.

28

变  速  类Transmission category

变速指拨Gear shifters

ARDM310DLC

七速指拨 ， 山地车分体变速器7 - speed Trigger Shifter, Mountain Bike Detachable Derailleur

29

飞轮Freewheel

ASLM3157RC

七速旋飞轮 ，齿比 14,16,18,21,24,28T

7 - speed Freewheel, Gear Ratios 14T, 16T, 18T, 21T, 24T, 28T

30

拨链器Derailleur

AMFTZ5007428

七速后拨链器 ， 山地车通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

31

变速线Shift cable

SP

1890MM

32

轮反光片Wheel reflector

XPJ-4402-02,反射器,美标 +车把反光 ，后反光        4 个

XPJ-4402-02, Reflectors, US Standard + Handlebar Reflectors, Rear Reflectors, 4 pcs.

33

电   器  类Electrical category

电机Motor

750W

26 寸无刷高速有霍尔 ，负载 45KM/H 以上 ， 48V/750W   Φ 12 × 12G × 36H × 190*260 黑色外壳大九芯防水线  出线长 ：250+950MM 压端子 SM-6A（1 ：红 2 ：黄 3 ：蓝 4：绿 5 ：黑 6： 白），外 7 速旋飞碟刹内置速度 1 粒磁钢

26-inch brushless high-speed hub motor with hall sensors, capable of maintaining over 45KM/H under load. Specifications: 48V/750W, Φ12×12G×36H×190*260 black casing. Equipped with large 9-core waterproof cable: outlet length 250+950MM, terminated with SM-6A connectors (wiring: 1-red, 2-yellow, 3-blue, 4-green, 5-black, 6-white). Features external 7-speed freewheel, disc brake compatibility, and built-in speed sensor with 1 magnetic steel.  长 ：250+950MM 压端子 SM-6A（1 ：红 2 ：黄 3 ：蓝 4：

34

控制器

Controller

48V

2 号协议 正旋波   9 管控制器    25A 电流  功能要求 ：转把：转把不受档位控制 助力：0-5 档开机默认 1 档前后灯由 多功能开关控制出大灯线 尾灯线 转向灯 SM 插件

2nd protocol sine wave controller, 9-tube design, 25A current. Functional requirements:

• Throttle: Throttle operation independent of gear settings

• Pedal assist: 0-5 gears, default to gear 1 on startup

• Lights: Front and rear lights controlled by multi-function switch, with headlight and taillight wires; turn signal with SM plug-in

35

仪表Meter

P6

2 号协议 LCD 液晶面板 48V线长： 300 ㎜   不含防水插 件 0-5 档,开机默认一档黑色带 USB 充电孔

P6, 2nd protocol LCD panel, 48V.

Wire length: 300mm (excluding waterproof plug).

0-5 gears, defaults to gear 1 when powered on.

Black color with USB charging port.

36

电池Battery

48V15AH

电芯 21700 配佳能二号电池盒充电孔 DC2.1 配放电线长 400mm 正负 4.0 子弹公头 负 ：4.0 子弹母头

Cell: 21700

With Canon No.2 battery box, charging port: DC2.1

Discharge wire length: 400mm

Positive: 4.0 bullet male connector

Negative: 4.0 bullet female connector

37

充电器Charger

锂电充电器輸出48V/2A   充电口 DC2.1  电源插头 UL

Lithium battery charger:

• Output: 48V/2A

• Charging port: DC2.1

• Power plug: UL certified

38

辅  料  类Auxiliary materials category

总成线

ssembly wire

一托四

One-to-four.

功能要求 ：仪表 ，刹把 ，转把 上方出线不含防水插件

Functional requirements:

• Instruments, brake levers, throttles

• Cable outlet above the components (excluding waterproof plugs)

39

仪表线

Instrument cable

HT-F-Z509BG 五芯线长

HT-F-Z509BG five-core wire length.

40

刹把线

brake lever cable

HT-F-Z209BG 二芯线长

HT-F-Z209BG two-core wire length.

41

指拨线

trigger shifter cable

HT-F-Z309BG 三芯线长

HT-F-Z309BG three-core wire length.

42

水标

Water decal

水标   单套： 5.5 +开模  500

Water decal:Single set: 5.5 + mold opening fee 500

43

说明书

Instruction manual

全英文版 按客户要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

44

小五金Hardware

见附表 1  Refer to Schedule 1.

45

烤漆Paint

电池盒+车架,2 遍底漆

Battery box + frame, two coats of primer.

46

扎带（小）

Small cable ties

4*100

47

C 型线卡C-type cable clips

48

胶带Tape

50*1000

49

珍珠棉Pearl cotton

1100*10

50

小内盒

Small inner box

长宽高 150*150*125

Length, width and height150*150*125

51

纸箱Carton

不含开版费

Excluding plate-making fee.
