1

操控类

Headset. Control Category

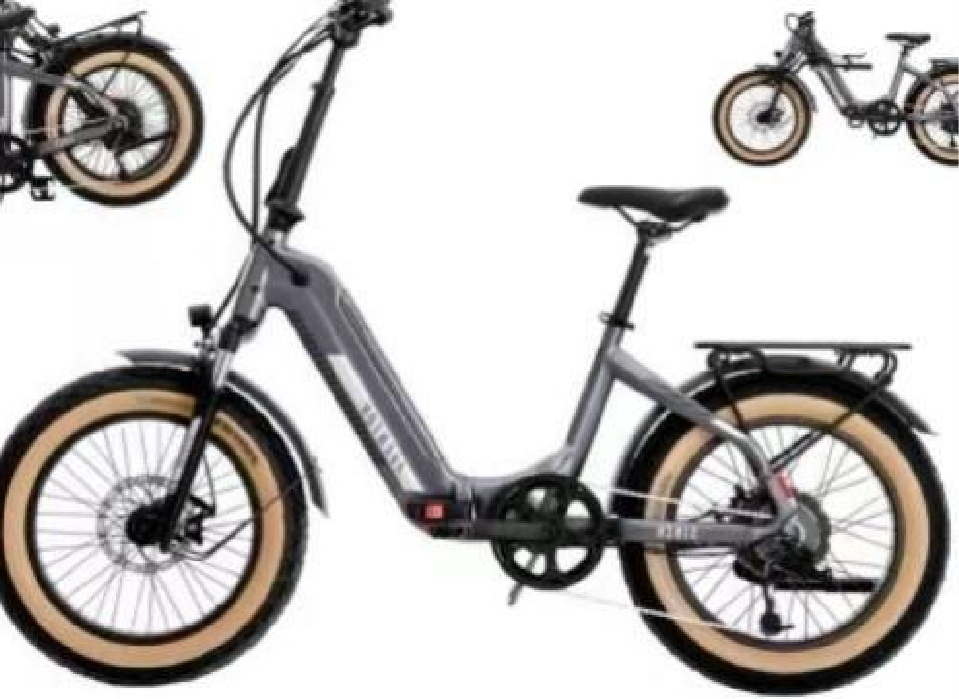

车架Frame

20 寸 ， 电机 550W ， 6061铝 ，勾爪加厚 ，开档依电机图 纸 ，柱式安装

20-inch, 550W motor, 6061 aluminum, thickened dropout, fork spacing according to motor drawings, column-mounted.

2

前叉Fork

FAT32-DH

铝单肩前叉 20" 机械减震竖管尺寸 28.6x30 竖管总长度  230mm 无牙 叉腿直管长 600mm 两夹板距 160mm 开档 135 mm20-inch aluminum single-shoulder front fork with mechanical shock absorption

.• Steerer tube size: 28.6x30

• Total length of steer tube: 230mm (threadless)

• Straight leg length: 600mm

• Distance between two clamp plates: 160mm

• Fork spacing: 135mm

3

车头碗Headset

KLB482

Φ28.6*44*30   H:14 附太阳花上压盖

Φ28.64430, H:14, with sunflower upper cover.

4

垫圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

170mm  A22  B120 C28  附外六角螺丝

170mm, A22, B120, C28, with hexagon socket head cap screws.

6

車把Handlebar

F-11

Φ22.2* Φ22.2* 680L  H:230

7

把立Stem

F-012

Alloyφ22.2 ×φ28.6 EXT:50 H:30

8

把套Handlebar grip

黑色 ，两端带铝尾套 ，带尾塞

Black, with aluminum end sleeves at both ends and end plugs.

9

鞍座Saddle

运动型鞍座 ，黑弓    Sport saddle, black rails.

10

鞍座管Seat post

Φ27,2 ， 300 长度 ，带刻度哑黑

Φ27.2, length 300mm, with scale, matte black.

11

座管夹Seat post clamp

黑色 ， 30,4      Black, 30.4

12

脚踏Pedal

LU-984DU

107*96*28MM   2DU   硼钢  塑料   散珠

1079628MM, 2DU, boron steel and plastic, loose balls.

13

刹车类

Brake Category

刹把Brake lever

铝手柄缩仔黑色配 22.2 车把 ，二芯断电线长不含防水插件 270mm(防水线我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

• Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

碟刹Disc brake

机械碟刹 F/R 碟盤:Φ180 ALLOY 主體烤漆霧黑色 前柱式按装后侧式按装 附螺丝

Aluminum handlebar grip (shrunk type, black), compatible with 22.2mm handlebars.

• Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

15

传动类

Transmission Category

齿盘Chainring

1/2 × 3/32"  48T 铁齿+PVC 黑色半罩黑色铝曲柄 170mm9/16"

1/2 × 3/32" 48T iron teeth + PVC, black half cover, black aluminum crankarms, 170mm, 9/16".

16

链条Chain

Z7

1/2 × 3/32 × 140L     PPO 接头

1/2 × 3/32 × 140L, with PPO connector.

17

輪胎Tire

CY5176

20"*4.0" 电动车用    内外胎 A/V 嘴

20"*4.0" electric vehicle tire and inner tube with A/V valve.

18

前轮圈Front rim

XLM-04B

20” ，铝圈。 13G*36 孔 AV 嘴

20", aluminum rim. 13G*36 holes with AV valve.

19

后轮圈Rear rim

XLM-04B

20” ，铝圈。 12G*36 孔 AV 嘴

20", aluminum rim. 12G*36 holes with AV valve.

20

衬带Tube

尼龙衬带 20"*70W 对折长度 615mm

Nylon tube, 20"*70W, folded length: 615mm.

21

辐条前Front spokes

13G*175 ，黑色 ，附加长铜头 SUS   4 交叉

13G*175, black, with extended copper head SUS, 4 cross.

22

辐条后Rear spokes

12G*129.5MM 长 ，黑色 ， 附加长铜头 SUS   2 交叉

12G*129.5MM length, black, with extended copper head SUS, 2 cross.

23

前花鼓Front hub

FHXGM131-1

3/8*12G*36H *135W 175L  铝： B47F  18.48 元/个

3/812G36H*135W 175L, aluminum: B47F, ¥18.48 each.

24

整车类

Vehicle Category

护板Guard plate

SP-01

黑色皮纹   Black leather texture

25

前泥板Front fender

20"4.0

前 ：弧长 350mm   吊耳距 130 PVC

Front: arc length 350mm, lug distance 130, PVC.

26

后泥板Rear fender

后 ：弧长 600mm  中孔距离 182mm PVC

Rear: arc length 600mm, center hole distance 182mm, PVC.

27

后椅架Rear rack

28

停車架Kickstand

20寸 ALLOY L215(铆钉到内侧底端面）

20寸 ALLOY  L215 (from rivet to inner bottom end face)

29

指拨Shifters

30

前大灯

Front headlight

48V 带外罩 带喇叭 大灯和日行灯一起亮  网格十装饰  不电镀强光 线长 1200mm 带 B 款 ED 支架配合 SM-3Y 插 件 （1 ：喇叭 2 ：负： 3 ：正）

48V with outer cover and horn. Headlight and daytime running light turn on simultaneously. Grid + decorative design, non-electroplated strong light. Wire length 1200mm, equipped with B-type ED bracket, compatible with SM-3Y insert (1: horn; 2: negative; 3: positive).

31

变速类

Transmission Category

变速转把

Grip Shifter

ARDM310DLC

七速指拨 ， 山地车分体变速器

7-speed trigger shifter, mountain bike separate derailleur.

32

飞轮Freewheel

ASLM3157RC

七速旋飞轮 ，齿比 14,16,18,21,24,28T

7-speed freewheel, gear ratios 14, 16, 18, 21, 24, 28T.

33

拨链器Derailleur

AMFTZ5007428

七速后拨链器 ， 山地车通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

34

变速线Shift cable

SP

1890MM

35

轮反光片Wheel reflector

XPJ-4402-02,反射器,美标XPJ - 4402 - 02, reflector, compliant with US standards.

36

菜篮Basket

铝菜篮Aluminum basket

37

电 器 类

Electrical Appliance Category

电机Motor

20 寸无刷高速有霍尔 ，负载 45KM/H 以上 ， 48V/350W  Φ 12 × 12G × 36H × 190*260 黑色外壳大九芯防水线  出线长 ：250+950MM 压端子 SM-6A（1 ：红 2 ：黄 3 ：蓝 4： 绿 5 ：黑 6： 白） ， 外 7 速旋飞碟刹 内置速度 1 粒磁  钢

20-inch brushless high-speed hub motor with hall sensors, capable of maintaining speeds over 45KM/H under load. Specifications: 48V/350W, Φ12×12G×36H×190*260 black casing. Equipped with large 9-core waterproof cable: outlet length 250+950MM, crimped with SM-6A terminals (1: red, 2: yellow, 3: blue, 4: green, 5: black, 6: white). Features external 7-speed freewheel, disc brake, and 1 built-in speed magnet.

38

控制器Controller

48V

2 号协议 正旋波 9 管控制器25A 电流  功能要求 ：转把：转把不受档位控制 助力：0-5 档开机默认 1 档 前后灯由 多功能开关控制出大灯线 尾灯线   转向灯 SM 插件2nd protocol, sine wave, 9-tube controller, 25A current.Functional requirements:

• Throttle: Uncontrolled by gear positions.

• Pedal assist: 0-5 gears, defaulting to gear 1 when powered on.

• Front and rear lights: Controlled by a multi-function switch, with headlight and taillight wires; turn signal with SM plug-in.

39

仪表Meter

P6

2 号协议 LCD 液晶面板   48V    线长： 300 ㎜   不含防水插 件 0-5 档,开机默认一档黑色带 USB 充电孔2nd protocol LCD panel, 48V.

Wire length: 300mm.

Without waterproof plug-in.

0-5 gears, defaulting to gear 1 when powered on.

Black color with USB charging port.

40

电池Battery

48V10AH

电芯 21700 配佳能二号电池盒充电孔 DC2.1 配放电线长 400mm 正负 4.0 子弹公头 负 ：4.0 子弹母头

Cell: 21700  With Canon No.2 battery box charging port: DC2.1

Discharge wire length: 400mm

Positive: 4.0 bullet male connector

Negative: 4.0 bullet female connector

41

充电器harger

锂电充电器輸出48V/2A   充电口 DC2.1  电源插头国标

Lithium battery charger:Output: 48V/2A

Charging port: DC2.1 Power plug: GB standard (Chinese national standard)

42

辅 料 类

Auxiliary Material Category

总成线Assembly wire

一托四

One-to-four.

功能要求 ：面板 ，刹把 ，转把上方出线不含防水插件长 100mm 主线长 850/200 不含插件

Functional requirements:

• Panel, brake lever, throttle: Upper outlet without waterproof plug-in, length 100mm.

• Main wire: Lengths 850mm and 200mm, without plug-ins.

43

仪表线

Instrument cable

HT-F-Z509BG 五芯线长 300mm 不含插件长

HT-F-Z509BG, 5-core wire, total length 300mm (excluding plug-in).

44

刹把线

brake lever cable

HT-F-Z209BG 二芯线长 300mm 不含插件长

HT-F-Z209BG, 2-core wire, total length 300mm (excluding plug-in).

45

转把线Throttle cable

HT-F-Z309BG 三芯线长 320mm 不含插件长

HT-F-Z309BG, 3-core wire, total length 320mm (excluding plug-in).

46

水标Water decal

水标 单套： 5.5 +开模  500

Water decal: Single set: 5.5 + mold opening fee 500

47

说明书Instruction manual

全英文版 按客户要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

48

小五金Hardware

见附表 1     Refer to Schedule 1.

49

烤漆Paint

电池盒+车架,2 遍底漆

Battery box + frame, two coats of primer.

50

扎带（小）Small cable ties

4*100

51

C 型线卡C-type cable clips

52

胶带Tape

50*1000

53

珍珠棉Pearl cotton

1100*10

54

小内盒Small inner box

长宽高 150*150*125    Length, width and height150*150*125

55

纸箱Carton

B20 FAT

7 层 1040×455 ×780内尺寸 印唛头

7 layers, inner dimensions 1040×455×780, print shipping marks.
