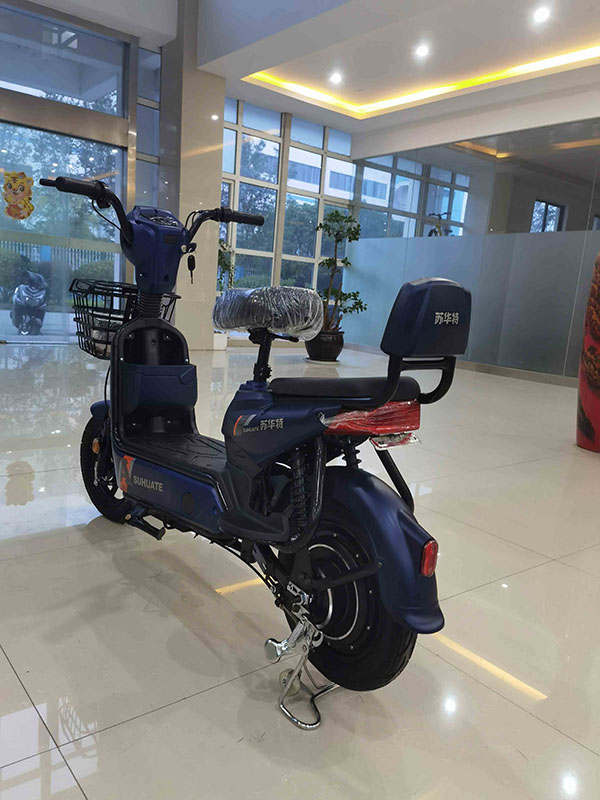

品牌Brand

苏华特 Suhuate

型号Type

SHT2301

电 器 系 统

电控

Electric control

48V 9管智能控制系统；无级调速；制动断电；欠压保护；过流保护；防失控保护等性能；稳定、高效。

48V 9-tube intelligent control system; stepless speed regulation; power-off braking; under-voltage protection; over-current protection; anti-runaway protection and other functions; stable and efficient.

控制器类型Type of controller

48V 9管  高效控制器

48V 9-tube high-efficiency controller

控制形式Control mode

矢量

vector control

电池

Battery

48V20Ah天能大容量铅酸电池

48V 20Ah Tianneng large-capacity lead-acid battery

电机

Motor

48V500W  轮毂电机，动力持久强劲平稳，爬坡能力，载重能力强。

48V 500W hub motor, providing lasting, powerful and smooth power, with strong climbing ability and high load-bearing capacity.

充电器battery charger

48V 防触电保护，充电平稳，耐高温

48V, with anti-electric shock protection, ensures stable charging and is resistant to high temperatures.

充电时间charging time

7-8小时

7 - 8 hours

驱动系统

Drive system

后轴驱动

Rear axle drive

制动系统

Brake system

前鼓刹,后鼓刹 ，性能优越

Front and rear drum brake, superior performance

外形尺寸 长*宽*高(mm)

Size Length * Width * Height (mm)

1560mm×660mm×1070mm

整车质量Vehicle mass

55kg

整车载荷Vehicle load

95kg

轴距

Wheelbase

1110mm

最大速度制动距(m)

≤6m

最大行驶速度

Maximum travel speed

40km/h

续驶里程

Range

60km

最大爬坡度

Maximum gradient

≤20°

充电输入电压

Charge input voltage

220v
